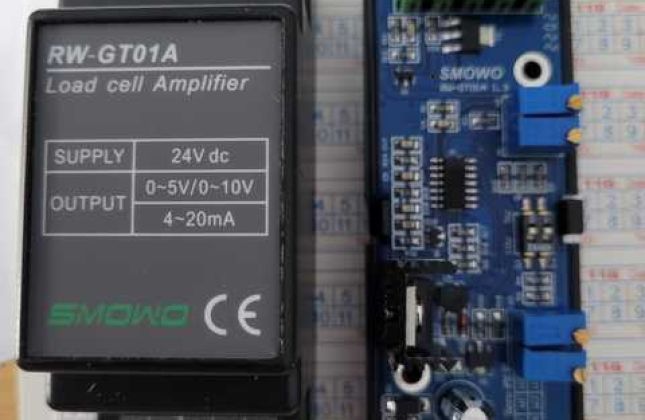

Bộ khuếch đại tín hiệu loadcell RW-GT01A
Bộ khuếch đại tín hiệu loadcell RW-GT01A
- Nguồn cấp: DC24V
- Tín hiệu ngõ vào: mV
- Ngõ ra: 0-5VDC, 0-10VDC và 4-20mA
- Độ phân giải cao: 24-bit
- Kích thước nhỏ gọn, gắn din rail
- Độ chính xác cao, chuẩn công nghiệp
- Chống nhiễu, giảm sai số đo lường
- Hàng mới
- Chính hãng
- Bảo hành: 12 tháng
- Có sẵn
Thanh toán linh hoạt: ngay khi giao hàng hoặc COD
► Tài liệu download miễn phí tại đây
*** Thông số kỹ thuật RW-GT01A
Din Rail Mountable Load Cell Amplifier RW-GT01A
A. Application Introduction
Load cell amplifier RW-GT01A can connect with all kinds of full bridge strain load cells to measure weight, force, tension etc.. It can adjust, filter and amplify mv electrical signal and output 0-5V(10V) and 4-20mA standard industrial control signal to support PLC or other measuring control system acquisition. Internal active low pass filter can filter out electromagnetic interference in industry site effectively. It takes din rail mounting to install easily.
B. Technical Data
1. Power Supply: 24Vdc(18-27Vdc)
2. Max Power:4W (supporting power supply for 350Ω load cell 4 pcs with current output 20mA)
3. Wiring Mode: screw-type wiring terminal
4. Net Weight:100g
5. Dimension:115x37x58mm(LxWxL)
6. Operation Temperature Range: -10℃ to 50℃
7. Storage Temperature Range: -20℃ to 80℃
8. Humidity: 85%RH, non condensation
9. Load Cell Sensitivity Range: 2.0mV/V±10%
10. Voltage Zero Point Adjustment Range: precision tune 10%F.S., coarse tune 40% F.S.
11. Voltage Full Scale Adjustment Range: 10%F.S.
12. Current Zero Point Adjustment Range: 10%F.S.
13. Current Full Scale Adjustment Range: 10%F.S.
14. Accuracy: better than 0.1%F.S.
15. Temperature Drift: better than 100ppm
16. Load Cell Excitation Voltage: 5Vdc±5%(normal Excitation voltage 5-12V load cell)
17. Load Cell Excitation Current:60mA
18. Signal Output: 0-5V or 0-10V and 4-20mA
19. Voltage Output Resistance:5kΩ
20. Current Output Resistance:500Ω
